Description

Armstrong Performance Mk II Carbon Mast

The Performance Mk II Carbon Mast delivers the next level of control, stiffness, and efficiency. Refined through three years of structural development and on water testing, it
provides a more direct, predictable connection between rider and foil. With a thinner 13.8 mm profile and significant stiffness gains, it is built to perform across
a wide range of disciplines and conditions, offering the most balanced blend of control, speed, and responsiveness in the Armstrong mast range.

Sizes:
725 mm
795 mm
865 mm
935 mm

Key Features:
Increased Stiffness
• Three years of structural optimization and testing
• 20% increase in torsional stiffness
• 30% increase in bending stiffness
• Improved control and precision across all conditions

Thinner, Lighter Profile
• Reduced thickness to 13.8 mm
• Slimmer profile for lower drag
• Reduced weight without sacrificing strength
• Improved efficiency and glide

Refined Structural Design

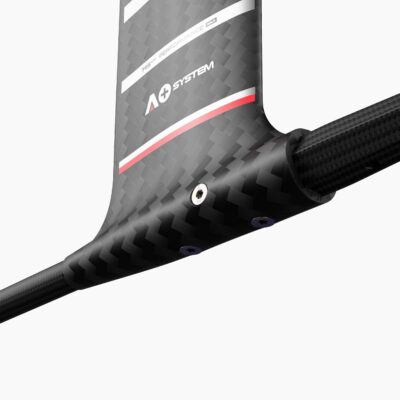

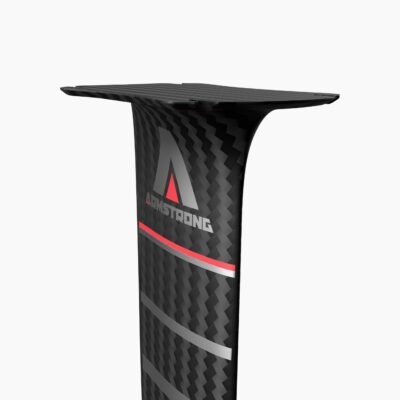

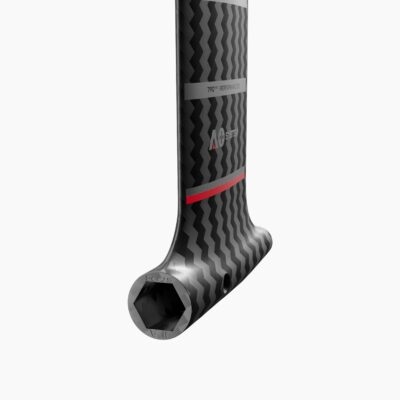

• Updated mast top and fuselage connections
• Material removed where not needed
• Strength added where loads are highest
• Improved load transfer and durability
• More connected ride feel

Advanced Carbon Layup
• Blend of high and ultra-high modulus carbon
• Targeted stiffness with minimal weight increase
• Immediate response and direct control
• Consistent performance across all setups

Optimized Rake by Size
• Rake angles tuned by mast length
• 0.5-degree rake on 725 and 795 for early lift and balance
• 1 degree rake on 865 and 935 for high-speed stability
• Designed to reduce the need for additional tuning

Ideal For
• Winging
• Prone
• Downwind
• Pump foiling
• Kite foiling

Inclusions
• Mast
• Protective cover

Pure Performance. Direct Control
Designed as the core performance mast in the range, the Performance Mk II Carbon Mast delivers a clear step forward in stiffness and control.

It provides sharp, direct feedback underfoot, allowing riders to stay fully connected to the foil in both powered and technical conditions. Whether pushing progression or
refining technique, it offers a predictable and confident ride across all disciplines.

Control at Speed
A high stiffness profile translates rider input instantly into foil response. Turns feel sharper, lines feel cleaner, and stability improves as speed increases.
In variable conditions such as chop, wind swell, or current, the added rigidity delivers a more composed and controlled experience, helping riders stay balanced and in control.

Faster, Cleaner Ride
The refined 13.8 mm profile reduces drag, improving glide and acceleration across the entire speed range.
Structural optimization removes unnecessary material while reinforcing key load areas, creating a mast that feels both faster and more efficient without compromising strength.

Engineered for Performance
Built using a refined carbon layup with high and ultra-high modulus fibres, the mast achieves increased stiffness without excess weight.
The result is a precise, durable, and high-performance mast designed to deliver consistent performance session after session.
Fully compatible with the Armstrong A+ System, it integrates seamlessly into existing setups.

Positioning
Sitting at the center of the mast lineup, the Performance Mk II Carbon Mast is the go-to option for riders seeking a direct, responsive feel across a wide range of conditions.
Balanced, efficient, and predictable, it is designed to perform at the highest level without compromise.

Inclusions
Protective Cover
T30 L-Shaped Torx Tool
Premium Titanium Stainless Hardware
(5x) M7 T-nuts
(5x) M7 26mm 316L Stainless Countersunk Head CSK Screws
(3x) M6 28.5mm 316L Stainless Countersunk Head Screws
(1x) 8mm Titanium Barrel Nut
0.5 degree mast shim
