Description

Code Foils Aluminium Mast – STEM ONLY

SIZES:
75cm
80cm

The Code Aluminium Mast is a purpose-built design delivering Code-level stiffness, fit, and performance in an aluminium construction, while significantly reducing the overall cost of a complete foil setup.

This is the first aluminium mast from Code that is compatible, rigid, and refined, making it an ideal foundation for riders entering the Code ecosystem across all disciplines.

Design Overview –
The Code Aluminium Mast features a parallel extruded aluminium section engineered for maximum stiffness and a precise, snug fit across all joints. Careful attention to geometry and tolerances eliminates play and delivers a solid, confidence-inspiring ride feel.

With a 120mm chord and 18.7mm thickness, the mast strikes a carefully balanced profile that offers excellent rigidity, efficiency, and durability.

Code offers two Aluminium Mast heights:

75cm
Designed for shallow water environments, prone surf, and riders spending time in the impact zone.
The shorter mast offers less drag, easier control at lower speeds, and reduced risk in shallow or
turbulent conditions. It’s a forgiving option that builds confidence for newer riders, while still
performing exceptionally well for experienced foilers in surf and downwind scenarios where agility
and control are key.

80cm
The true all-rounder in the lineup. The added length provides increased clearance in choppy water,
improved stability at speed, and greater freedom to lean into turns without breaching. Well suited to
a wide range of disciplines including surf, parawing, wingfoiling, tow foiling, and Foil Drive use, the
80cm mast is the go-to choice for riders looking for maximum versatility across varying conditions.

Components
Please note that components of the Aluminium Mast are sold separately.

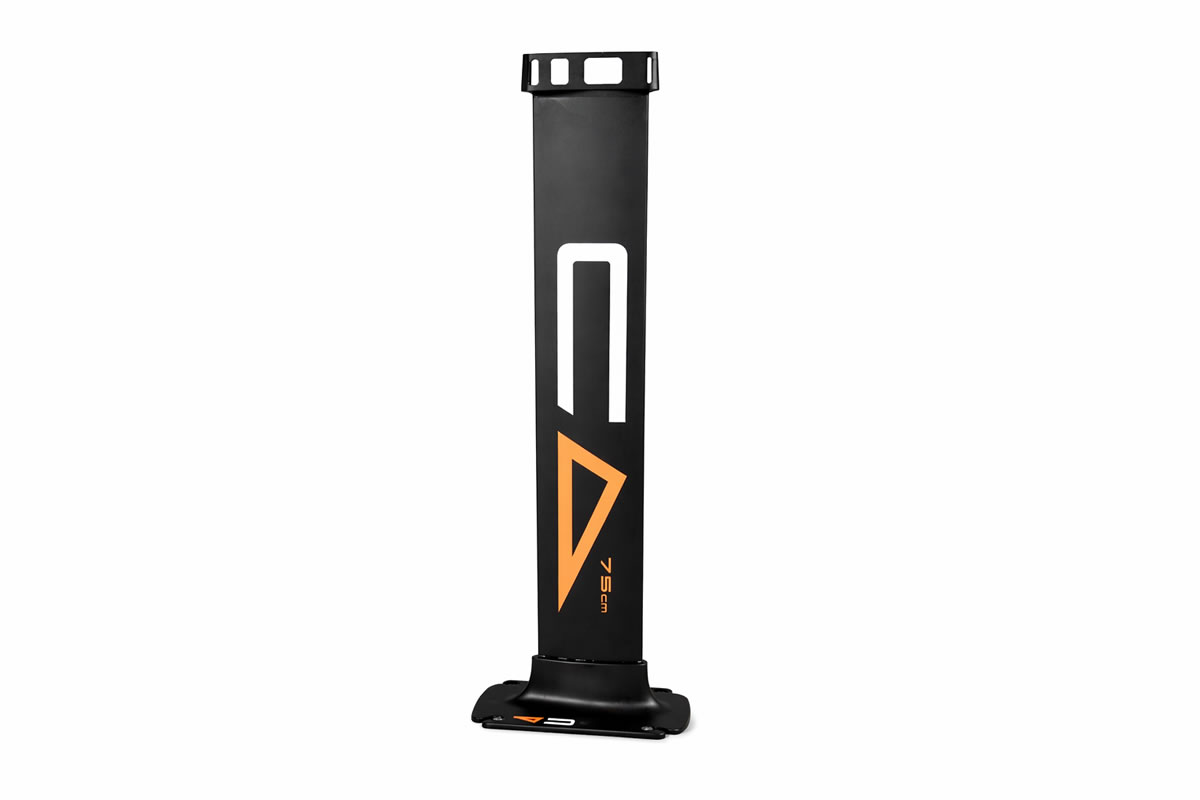

Aluminium Mast Stem (75cm or 80cm)

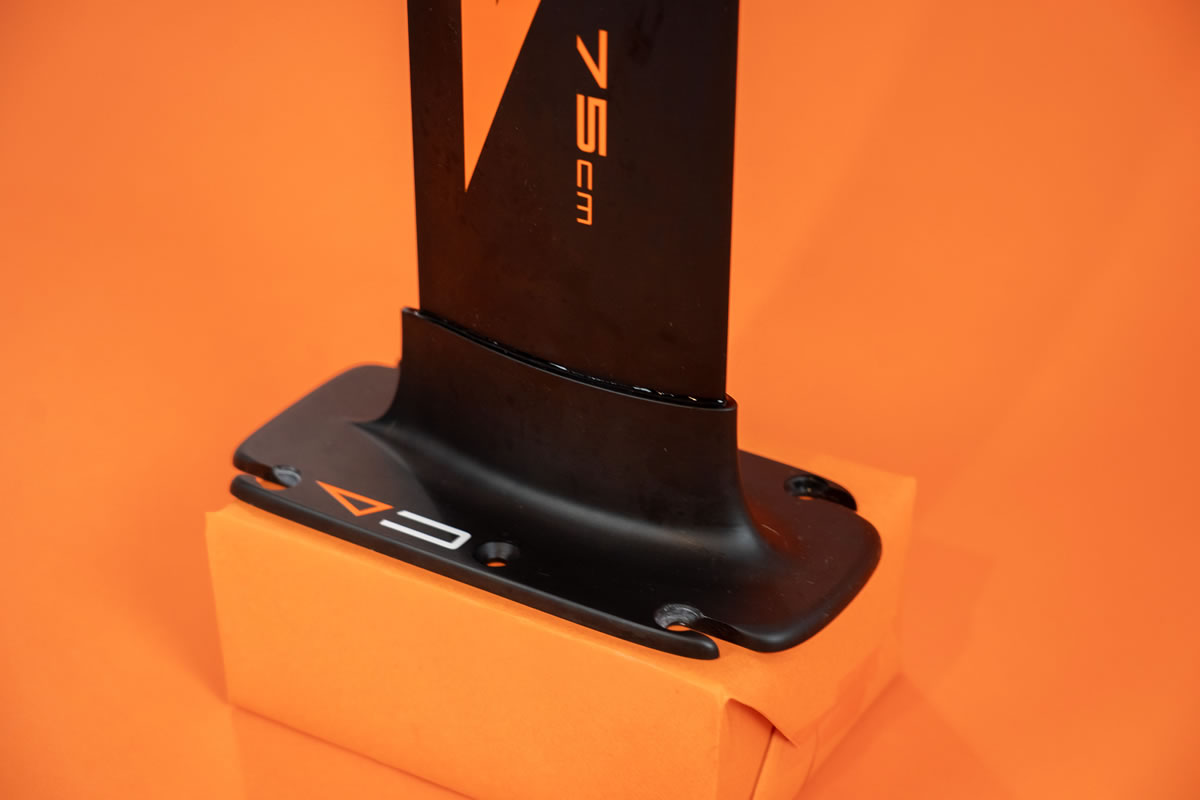

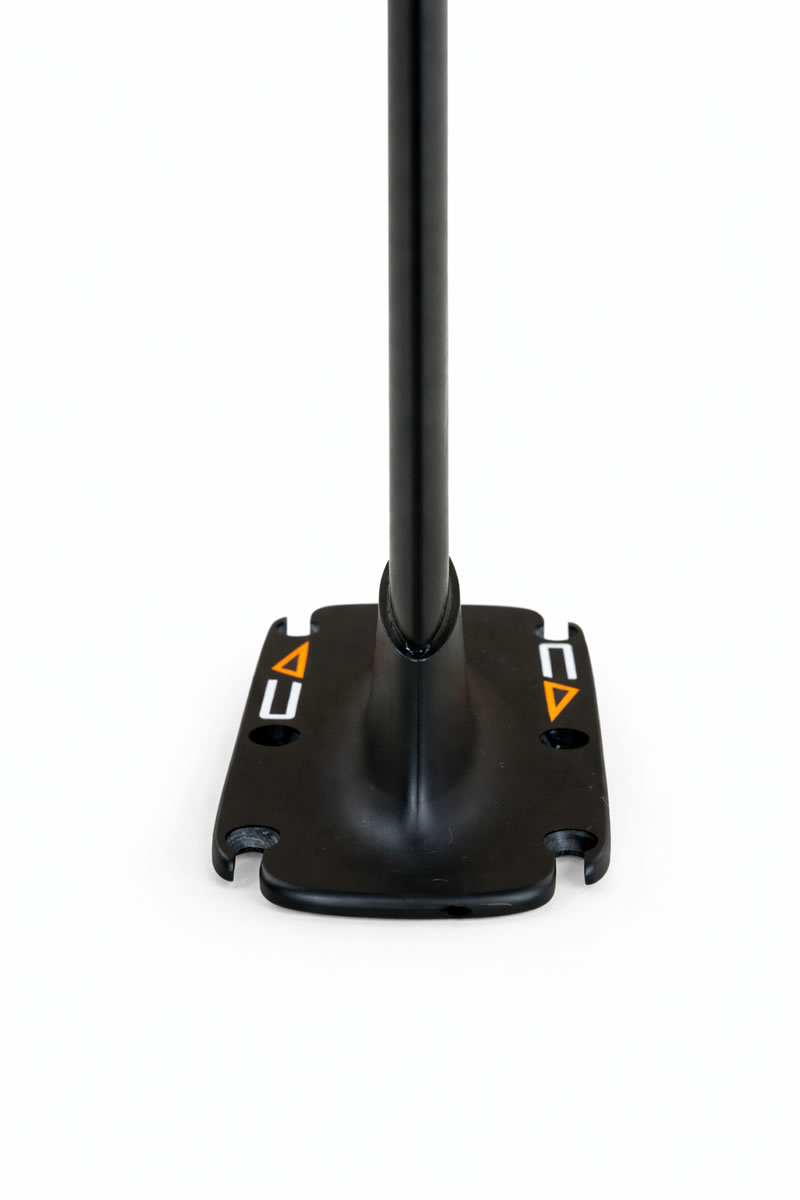

Base Plate
Top Socket
Aluminium Bolt Kit Set
Mast Cover (75cm or 80cm)
Aluminium bolt kit set includes
4 × M8 × 75mm T30 Torx bolts
1 × M6 × 80mm T30 Torx bolt
1 × M6 × 30mm T30 Torx bolt
1 × M6 × 20mm T30 Torx bolt
1 × M6 × 15mm T30 Torx hollow bolt
4 × M8 × 28mm track bolts
1 × zinc plated T30 tool
