Description

The Foil Drive Assist MAX+ takes everything that the world loved about our most popular foil assist and evolves it into the latest Gen 2.5 class, turning up thrust, runtime, and safety features to unlock autonomy across all foiling disciplines.

Built around the same proven 43V power, tech, and charging architecture of the Fusion, the MAX+ offers our most durable one piece battery design, all while retaining the compact, lightweight and balanced package that made the original MAX so versatile.

Unlock smaller foils, boards, performance, faster take-off, and more time on the water with tilt-safety cut off features that makes this same retrofit kit so family friendly.

The lightweight balance that made MAX the all rounder remains, while everything around it has evolved.

Riders can enjoy a sportier feel without compromising on thrust and boost thanks to the NEW FM+650 Battery (650Wh) and early in 2027 the even smaller, FM+430 Battery.

Details

icon

The Assist MAX+ is built for riders who want the best all-around system that can open up every side of foiling

  • Spend over an hour flying through surf and riding waves.
  • Motor upwind to unlock downwind runs without a shuttle
  • Practice pumping without wasting energy on repeated tow or surf starts
  • Chase wakes from passing boats
  • Extra thrust to get onto smaller foils and boards with more confidence and runtime.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surf, lightwind wing, downwind, wake, flatwater or eFoiling, it adds more power, runtime and range to practically any existing foil setup you have already or want to ride, making every session easier to access, more productive and more fun.

Tech Specs

icon

  • System Voltage: 43.2V
  • Battery Capacity Range: 648Wh
  • Max Thrust: 35.5kg
  • Minimum Install Weight*: 6.71 kg
  • Dimensions with Battery: 540x125x55mm
  • Peak Power (Boost): 2150W
  • Sustained Power: 1750W
  • Peak Horsepower: 2.88hp
  • Sustained Horsepower: 2.35hp
  • App Compatibility: Foil Drive App, Android and IOS
  • Water Rating: IP68 Water and Dust Resistance
  • Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) – Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

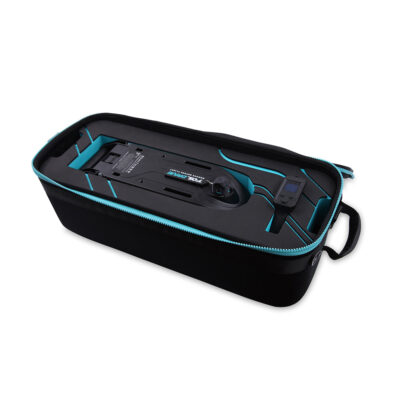

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
– USB-C Charge Pad and Cable
– Bump Guard Variation
– Wrist Leash
– 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack



Specifications

Weight5 kg

Foil Drive Foil Assist Kit MAX+ (Base Kit)

$5,601.00
